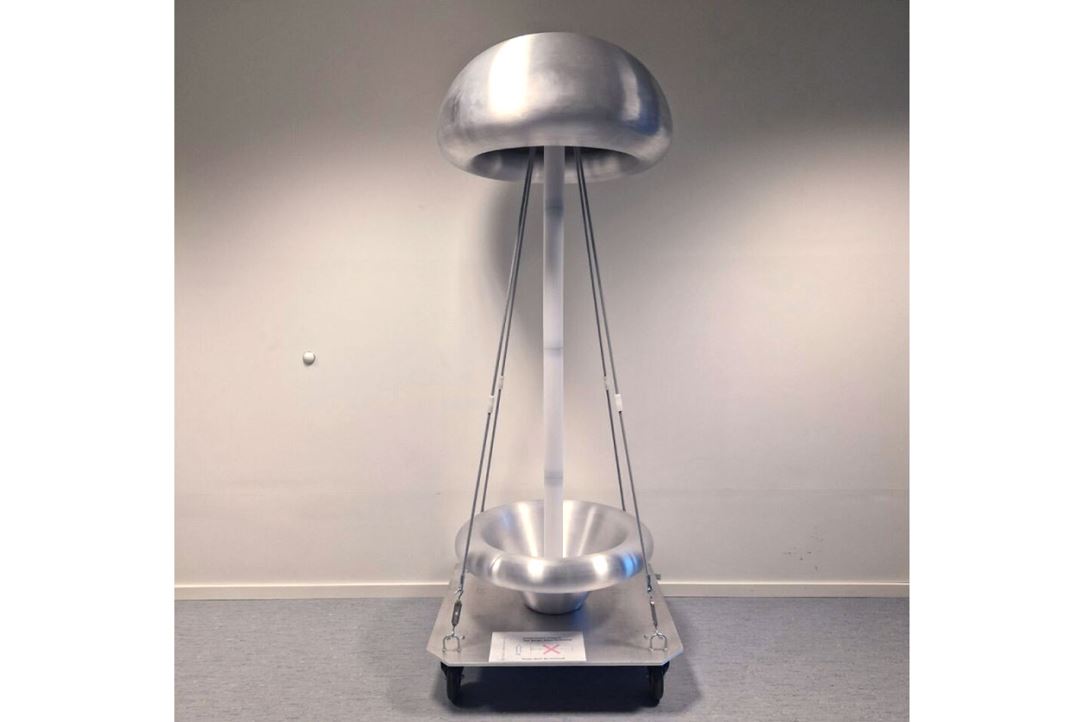

HV-probe (max 400 kV)
Model: VD-400
Contact person
Manufacturer: North Star
High voltage probe (divider)
- DC voltage: 400 kV
- AC voltage: 180 kVRMS
- Impulse: 550 kV
- Bandwidth: 8 MHz
- Risetime: 40 ns
- Cable length: 30 meter or fibre optic
- Height: 180 cm
These high voltage dividers can be split and refitted to measure > 6 channels at VD-100 level
Fibre optic link
Model: Transmitter PDT-T3-6H and receiver PDR-T1-6R
Manufacturer: Point2point
Six fibre optic links, originally acquired to be used with the high voltage probes VD-100 and VD-400. Can be used separately, in two sets of three or in total six channels.
