Some of the propeller blades manufactured by Oshaug Metall AS in Molde are so big that if the complete propeller stood on end, it would reach up to the roof of a three-storey building.
In collaboration with Oshaug, SINTEF has developed an energy-saving casting technology which has recently successfully completed pilot trials at the foundry’s manufacturing centre in Norway’s so-called ‘City of Roses’.
“The pilots reveal that the method can save as much as 35 per cent of the electricity currently used to melt the metal we need to cast a propeller”, says Arne Nordmark, a researcher at SINTEF and father of the invention.
Naval vessels and cruise ships

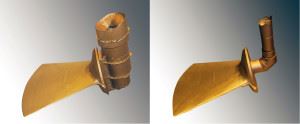

Both photos show a recently cast propeller blade weighing 155 kg. The cylinders attached to the right-hand side of each blade are the solidified metal remaining in the ‘feeders’, which have supplied additional molten metal to compensate for shrinkage of the casting as it solidifies. A current feeder (left) leaves 164 kg of unused metal. The new feeder (right) leaves only 8 kg. The new technology pilot thus saved Oshaug Metall from having to melt 156 kilos of extra metal. Photo: Oshaug Metall/Arnt Jørgen Sønslien
Click to open
Propeller parts from the foundry in Molde end up in the propulsion systems and lateral propellers in everything from naval vessels to cruise ships.
The smelting furnaces at Oshaug consume as much electricity as a hundred average Norwegian households – amounting to 1.5 million kilowatt hours a year.
“The results of the project so far indicate that we can reduce electricity consumption by half a million kilowatt hours a year, and in this way reduce both costs and negative impacts on the environment”, says Stein Berg Oshaug, Managing Director at Oshaug Metall.
He heads a company of 40 employees and estimates that the new technology will be in operation some time next year.
“Feeding” while casting
Unlike water, which expands when it freezes, molten metals shrink in volume when they solidify. Foundries compensate for this during the casting process by adding a little extra molten metal from reservoirs called ‘feeders’.
Facts about the 'InFEED' project
- It has resulted in feeders heated by induction coils which can reduce electricity consumption in metal and steel foundries. The most relevant applications are the casting of propeller blades, propeller heads, pumps, valves and other larger components.
- It is a research project carried out using funding from the Research Council of Norway.
- Researcher Arne Nordmark and Engineer Kurt Sandaunet at SINTEF Materials and Chemistry have been responsible for implementation of the project, in close collaboration with the companies Oshaug Metall AS and Scana Steel Stavanger AS. The company EFD Induction a.s in Skien has also provided input.
- Oshaug Metall is best known for casting propeller blades for the propulsion systems of the most recent destroyers commissioned by the British Royal Navy. The company has also supplied similar components for the new Norwegian frigates.
However, the metal in the feeder also solidifies. But if it is to compensate for the shrinkage in the casting, this metal must not be allowed to solidify before the propeller metal does.
The feeder must retain molten metal right up until the time when the blade becomes solid.
Currently, this is achieved by making big feeders – on the principle that large volumes solidify more slowly than small ones.
Supplying heat
The new invention involves surrounding the feeder with an induction coil that supplies heat which keeps the metal in the feeder molten.
This means that feeders no longer have to be so big in order to do their job. They only have to be large enough to contain the small amount of molten metal needed to compensate for the shrinkage in the casting.
According Nordmark, this is important because;
- Currently, in order to prevent the too rapid solidification of the metal in the feeder, a propeller blade manufactured using traditional casting methods requires a feeder almost as large as the blade itself. A blade weighing 1000 kg may require a feeder weighing as much as 800 kg.
- However, shrinkage during solidification constitutes only about ten per cent of the weight and volume of the propeller blade. If the metal in the feeder is kept molten using heat supplied by an induction coil, only 100 kg are required to compensate for the shrinkage of a propeller blade weighing 1000 kg.
- Instead of having to melt 1800 kg (1000 + 800) of metal, a foundry using the new technology will now need only 1100 kg (1000 + 100). This is what makes the method so miserly in terms of energy consumption.
Increased production capacity
On top of this there is an extra benefit. Because the invention comes close to halving the amount of metal that has to be melted, Oshaug will now be able to cast more propeller blades in a given time (or indeed bigger blades) than its current capacity permits.
“The new technology enables us to increase production capacity by as much as 50 per cent, and in cash terms this is even more than we save in electricity”, says Stein Berg Oshaug.
Less post-casting work
An extra bonus is that there is less need for heavy-duty post-casting work.
After the casting process is complete and the metal solidified, the feeder metal is cut from the casting for re-melting during the next casting operation. This cutting process is very time-consuming for feeders of large diameter. During the pilot trials of the new technology in Molde, the diameter of the feeder was reduced by 60 per cent, thus reducing cutting work.
“Less post-casting work means lower costs and, moreover, the environment in the foundry is improved when cutting is reduced”, says Oshaug.
