Wind and sun, two unpredictable resources, are becoming ever more important as sources of energy in Europe. This means that we face a growing need for energy storage facilities, because if energy cannot be used immediately when it is generated, it needs to be stored until it is needed.
The dream of zero heat exchange
The EU project RICAS 2020, in which SINTEF is a partner, aims to go some way to developing what is known as an “adiabatic process”. The term “adiabatic” means “lossless” and refers to the storage and recovery of energy without the exchange of heat with the external environment.
In theory, there are three different means of fulfilling the dream of utilising compressed air without energy loss.
- Imagine an ideally insulated air compressor and recipient, in which the air does not exchange heat with any of the components of the system. Such a system will store compressed air at high temperature. If we could then utilise the air in an ideally insulated air engine, we would utilise practically all of the energy stored within the system.
- Alternatively, imagine that the temperature of the air is kept constant during the compression process by immediately extracting large quantities of heat of compression, which could be put to practical use. When the air is to be used, it would be a good idea to return an amount of heat to the cycle, equivalent to what has been extracted. This heat could be absorbed at environmental temperature, i.e. almost gratis. If this could be done “perfectly” we would also regain practically all the stored energy.
- A third possibility is to hang on to the heat generated by the compression process, i.e. to store it until the compressed air is to be used. One possible solution would be to allow the hot air to pass through a chamber filled with a mass that would store its heat.
This last is the route that the RICAS 2020 project has chosen to follow
Sources: the Danish technologist Peter Cordsen and SINTEF
The least expensive method is to use hydropower reservoirs as ‘batteries’: i.e. generate electricity using the stored water, when power is in short supply, and subsequently pump the water back uphill when surplus renewable energy is available. However, this is a practical solution only in mountainous regions, such as we have in Norway and a few other countries.
What if less fortunate countries and regions could use air instead of water as a way of storing energy? Under the auspices of the European Union, scientists from all over Europe are attempting to turn this concept into a viable prospect, via a research project (RICAS 2020) of which SINTEF is a member. The project participants have in mind all parts of the world where sealed disused caverns could be used as storage sites.
Like a hot bicycle-tyre pump
The general principle, which has already been adopted at a few sites around the world, is essentially a matter of using surplus electric power to compress air, which is then stored in an underground cavern. When power needs to be made available, the air is released through a gas turbine that generates electricity. Existing plants of this type are often used to meet peak demand as a supplement to classical power plants, providing the right amount of electricity needed at different times during the day.
The physics governing storing energy in the form of compressed air is a result of a law of nature familiar to every user of a bicycle pump: the process of compressing air heats it up. Bicycle pumps compress air in order to increase the pressure of the tyres, and in doing so, makes the pump hot.
“The more of the heat of compression that the air has retained when it is released from the store, the more work it can perform as it passes through the gas turbine. And we think that we will be able to conserve more of that heat than current storage technology can, thus increasing the net efficiency of the storage facilities,” says Giovanni Perillo, project manager for SINTEF’s contribution to RICAS 2020.

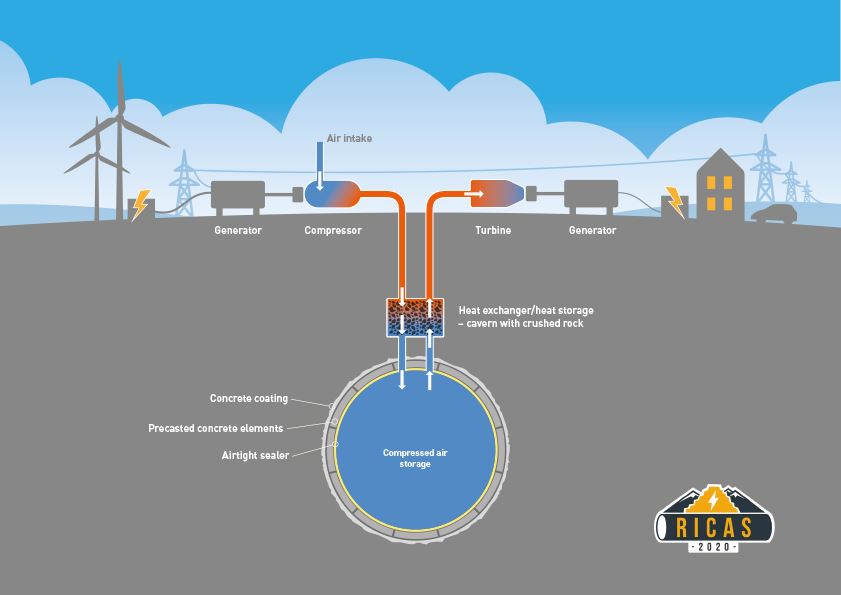

This is the idea that RICAS 2020 will be helping to realise: surplus energy generated by wind turbines and solar cells is used to compress air, which is stored in caverns in solid bedrock. When air is compressed, it heats up, so a separate underground heat store stockpiles the heat generated by the compression process. When the energy is needed, the air is released through a gas turbine, which generates electricity. The more hot air that is released through the heat store on its way out, the more electricity will be generated; in other words: the more effective is the energy storage. Source: Giovanni Perillo, SINTEF. Illustration: Knut Gangåssæter, SINTEF.
Underground caverns as heat storage
The two largest compressed air stores in the world are in Germany and the USA. They are underground chambers created in salt formations. But these plants lose a large proportion of the potential energy of the compressed air, because they do not incorporate a system to store the heat produced during the air compression stage.
The participants in RICAS 2020 have a recipe for reducing these losses in future underground storage caverns. At the core of the recipe is an extra station that they have incorporated in their solution.
- On its way down to the underground cavern, the hot compressed air passes through a separate cavern filled with crushed rock.
- The hot air heats up the rock, which retains a large proportion of the heat.
- The cold air is stored in the main cavern
- When the air subsequently returns through the crushed rock on its way to be used to generate electricity, the flow of air is reheated by the stones.
- Hot air is then expanded through the turbine generating electricity
Cheaper than batteries
SINTEF scientist Giovanni Perillo has responsibility for developing the plastic materials that will seal the walls of the underground compressed air storage sites. This membrane will need to withstand demanding conditions; the air will be stored at pressures that are 36 to 70 times as high as air pressure at sea level. Photo: Thor Nielsen/SINTEF
SINTEF’s project manager explains that it is estimated that this technology could raise the efficiency of the system to as much as 70-80%. The corresponding figures for most of the existing storage sites are no better than 45 to 55 per cent, which means that the produced energy is only half of what was initially used to compress the air into the cavern.
“The project is based on the belief that our solution will offer better energy storage than batteries can ever provide, thanks to its longer lifetime and lower capital cost per kWh of stored energy. We also expect that it can be employed virtually irrespective of the type of geological formation available,” says Perillo.
Disused caverns would be just the thing
According to Perillo, there is only a single requirement as regards the choice of site. Large hollow spaces must already exist, as it would be too expensive to excavate new caverns and make them safe.
The participants in the project are therefore envisaging that existing disused underground spaces could be reopened to house the compressed air.
“We regard disused tunnels and mineshafts as potential storage sites, and Norway has those in plenty,” says Perillo.
Membrane to seal the cavern walls
The SINTEF researcher is himself a materials scientist. In this EU project he is responsible for SINTEF’s research and development efforts regarding the sealing membrane that will be needed to keep the compressed-air storage sites – literally – airtight.
SINTEF scientists are also contributing their expertise in underground technology, with calculations that will ensure that their solutions, including the sealant materials, will be capable of withstanding the pressure they will be exposed to.
The EU RICAS 2020 project
Duration: 2015 – 2018
Budget: Almost €1.4 million
Coordinator: Montanuniversität Leoben, Austria
Participants:
- Montanuniversität Leoben, Austria
- SINTEF, Norway
- Eth Zürich, Switzerland
- HBI Haerter GmbH, Germany
- Bayerisches Laserzentrum, Germany
- Alstom (Switzerland) Ltd, Switzerland
- Acondicionamiento Tarrasense Association (LEITAT), Spain
The project will lead to a set of technical specifications and detailed cost analyses. Whether or not a pilot plant is set up will depend on the results of these studies.
“If it turns out that our solution functions well, exciting new possibilities will emerge, not only for energy storage itself, but also for industrial applications of compressed air,” says Perillo.
Many previous plans abandoned
In the midst of the Alpine landscape of southern Germany, Dr. Matthias Finkenrath, Professor of Energy Engineering at Kempten University of Applied Science in Bavaria, has been researching the use of compressed air for energy storage for many years.
He explains that poor energy efficiency has reduced interest in the few plants that are already in operation, and that in the course of the past 15 years, a great deal of money has been invested in developing more energy-efficient versions of the compressed-air energy storage concept.
However, according to the professor, the combination of major technological challenges, low energy prices and uncertainties in the energy market has acted as a “showstopper”, which has led to all plans for large-scale demonstration plants being postponed or abandoned. Nothing would therefore please the professor more than seeing the EU project meet its goals.
Believes hot energy storage could lead to a breakthrough
“Compressed air stores of the sort that this project is aiming for, could provide significantly lower costs and greatly improve storage capacity compared to for example batteries. If this project leads to storage plants being established under a wide range of geological conditions, that in itself would be an important step forward.
“If the project partners are also successful with their plans for efficient heat storage, the use of compressed air for energy storage could be on the edge of a breakthrough,” says Professor Finkenrath.
