The lunar ‘soil’, or regolith as geologists call it, is essentially a powder in which it is difficult to grow plants. As if this wasn’t enough, the Moon is characterised by temperatures that can reach 200 degrees during the day and fall to as low as minus 183 degrees at night.
So says SINTEF researcher Galina Simonsen. However, in spite of this, Simonsen and her colleagues working as part of the international project LunarPlant, which is being headed by NTNU Social Research and the Centre for Interdisciplinary Research in Space (CIRiS), believe that it will be possible to grow food plants on the Moon.
Meeting this challenge requires a rational utilisation of available resources, combined with sufficient light and an artificial atmosphere. There is also a need to find a replacement for fertile soil.
New ways of cultivation
“You may already have heard of hydroponics”, says Simonsen. “This is a method of growing plants in water, which is entirely possible if the water contains sufficient nutrients. The use of this method is essential to the success of this project”, she explains.
– How much water is there on the Moon?
“Radar data indicates that the Moon’s polar regions hold more than 600 billion kilogrammes of ice”, says Simonsen, “This is enough to fill about 240,000 Olympic-sized swimming pools. It is much less than we have on Earth, but will be enough to enable humans to maintain some level of activity. The ice will be melted to form water which will be used to cultivate food plants”, she explains.
However, growing plants in water requires that the water contains sufficient nutrients. The ‘fertiliser’ that will be utilised on the Moon will in fact be provided by the astronauts themselves in the form of human waste – their urine. Because this project is based on the circular use of resources.

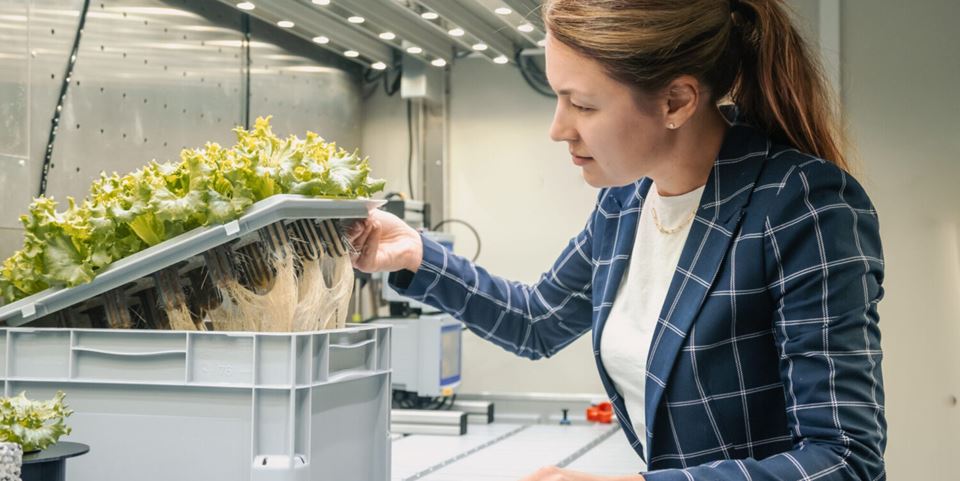

These lettuce plants have been grown in a ‘soil’ made of cellulose, with human urine as fertiliser. Photo: Jana Pavlova
This is where the term ‘liquid gold’ makes its entrance. Gardening enthusiasts among Gemini readers will know that this is the name given to urine diluted in water. Many a flower bed has been brought into bloom thanks to more than a few drops of ‘liquid gold’. However, it is normally not recommended to use urine as a fertiliser for plants intended for human consumption. One of the challenges in this project is to find out how we can use this resource safely.
“Barriers linked to the use of urine as a fertiliser include the strict regulations governing the use of human waste in food plant cultivation”, explains Simonsen. “In addition, the handling of human urine is generally unpleasant, combined with the odour and the fact that it releases long-lived organic environmental toxins and trace metals”, she says.
Plants grown in ‘liquid gold’ must be analysed carefully and accurately so that we can identify safe threshold values with a view to approving their use as a food source. Moreover, the plants themselves have to contain sufficient nutrients.
“It may be possible to extract some nutrients for plant growth from the lunar regolith (the lunar soil)”, says Simonsen. “But these are somewhat meagre. Urine can provide nitrogen, potassium and phosphorous. If you are cultivating salad plants, you can also grow other edible plants that can assist with the regulation of both the water quality and nutrient balance in the system”, she says.
Soil? We only find true soils on Earth
Another aspect of the LunarPlant project is focusing on soil. Or, to be more precise in the case of the Moon, the lack of soil. Soil on Earth not only provides nutrients – it is also the habitat in which the plants ‘live’.
“We’re trying to find out how we can get the plants to grow without collapsing”, says Simonsen. “This involves identifying a growing medium that enables plants to develop a root system that gives them adequate support”, she says.
In order to stand upright, plants prefer to have something solid in which to drive their roots. Currently, rockwool is used by some hydroponic horticulturalists. But rockwool is not a sustainable material, at least not on the Moon.
“Sending rockwool to the Moon could cost up to NOK 20 million per kilo”, explains Simonsen. “For this reason, it is important that we can use a material that is entirely circular. It has to be light and multifunctional. In other words, a material that can first be used for a purpose other than that as a growing medium”, she says.
So, in collaboration with the VTT technical research centre in Finland, the researchers have developed a substrate that functions as a supportive collar for the growing plants.
The substrate is in fact a cellulose-based alternative to soil and rockwool. The cellulose is produced by plants or, more precisely, from plant waste. The substrate can first be used as insulation material for the secure transport of vital and sensitive equipment that has to be carried from Earth to the Moon. On its arrival, it can be reused as a growing medium.

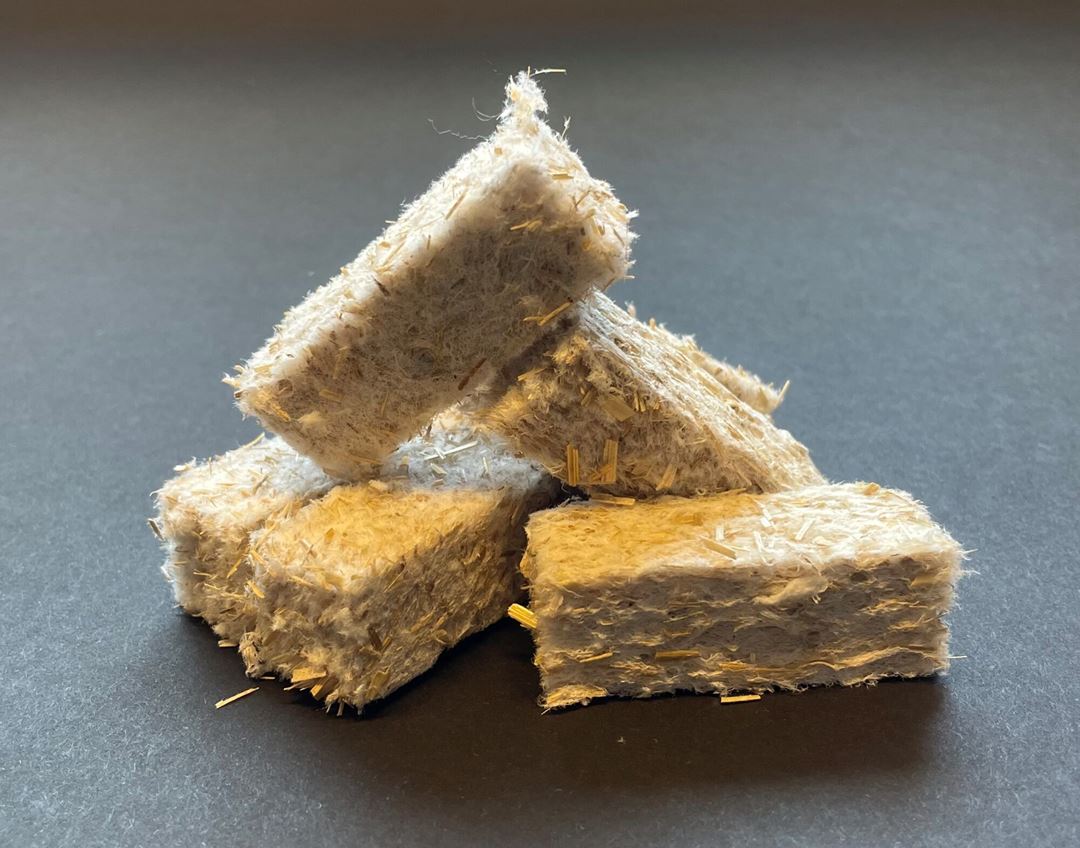

These cellulose-based cubes are more advanced than they may appear. They will make it possible to grow food plants on the Moon. Photo: Galina Simonsen/SINTEF
So far the results have been promising.
“We observe that the substrate doesn’t break up in the aqueous growing medium. Its components are also plant-friendly and free from any chemicals that may have a negative impact on plant growth or food safety”, says Simonsen.
– Has the system any limitations?
“Yes”, replies Simonsen. “Its application is limited to only certain types of plants. Only a few plants can be cultivated hydroponically, such as tomatoes, cucumbers, strawberries and salad vegetables. Others, such as root vegetables, cannot be grown using this method”, she explains.
Learning from the oil industry
The substrate is thus essential, but it is also important to know how the water it contains behaves. For example, some plants do not like ‘getting their feet too wet’.
“The water must not be allowed to stagnate”, says Simonsen. “There must always be adequate water flow. Both air and water have to be transported efficiently through the material in order to ensure healthy plant growth. The substrate must be sufficiently robust to support a fully developed plant and at the same time enable the roots to grow unobstructed”, she says.
In order to find out how this happens, the researchers have obtained know-how from the oil industry, and multiphase flow modelling has been shown to be a very useful tool.
“Technologies used for oil and gas transport have proved to be transferable”, says Simonsen. “The methods we apply for fluid hydrocarbon transport in major installations can be transferred to the mechanisms working in minute structures such as these plant substrates”, she says
“Our aim is to construct a digital model that simulates the different factors that influence the behaviour of the substrate”, explains Simonsen. “This will enable us to run simulations under conditions that are identical to those on the Moon, including the effect of weightlessness”, she says.
– Can we also use this technology to grow plants in hostile regions on Earth?
“Absolutely”, says Simonsen. “This method of cultivation can be applied anywhere, and is particularly important in the context of resource utilisation. Urine contains phosphorous, which is a non-renewable resource, and rockwool, which is currently used in a number of situations, is not biodegradable”, she says.
