About SlagStruc

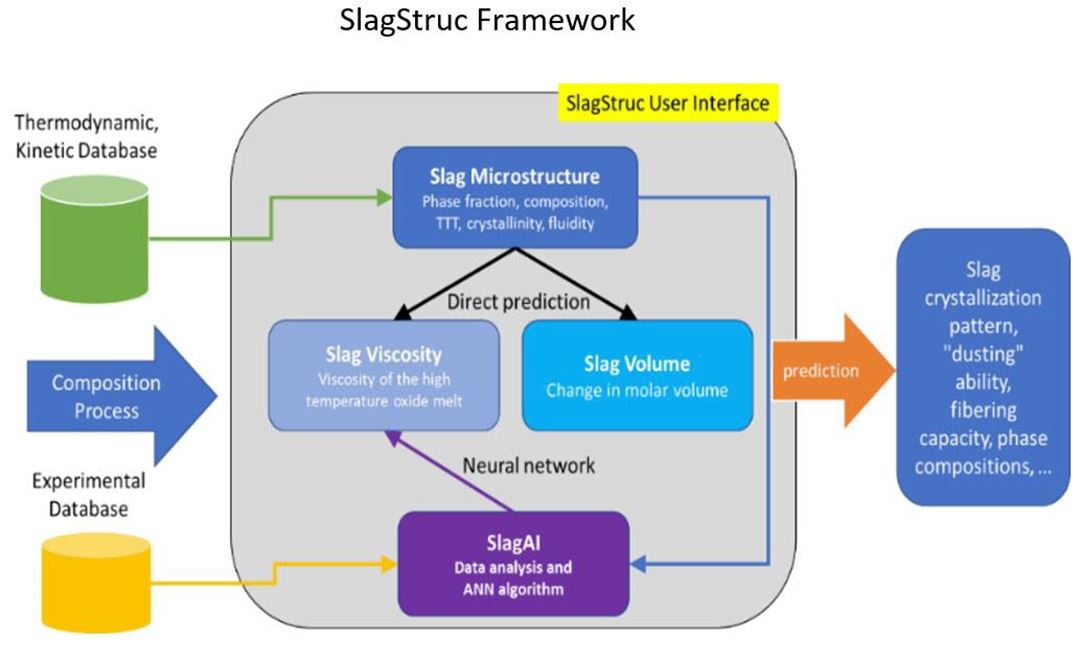

SlagStruc framework consists of the following elements:
- Generic entities to describe slag material and properties, with associated post-processing functions
- A module to fetch information from thermodynamic databases
- A microstructure model for solidification under equilibrium or Scheil's conditions
- A module to compute and build TTT diagram (Time-Temperature-Transformation)

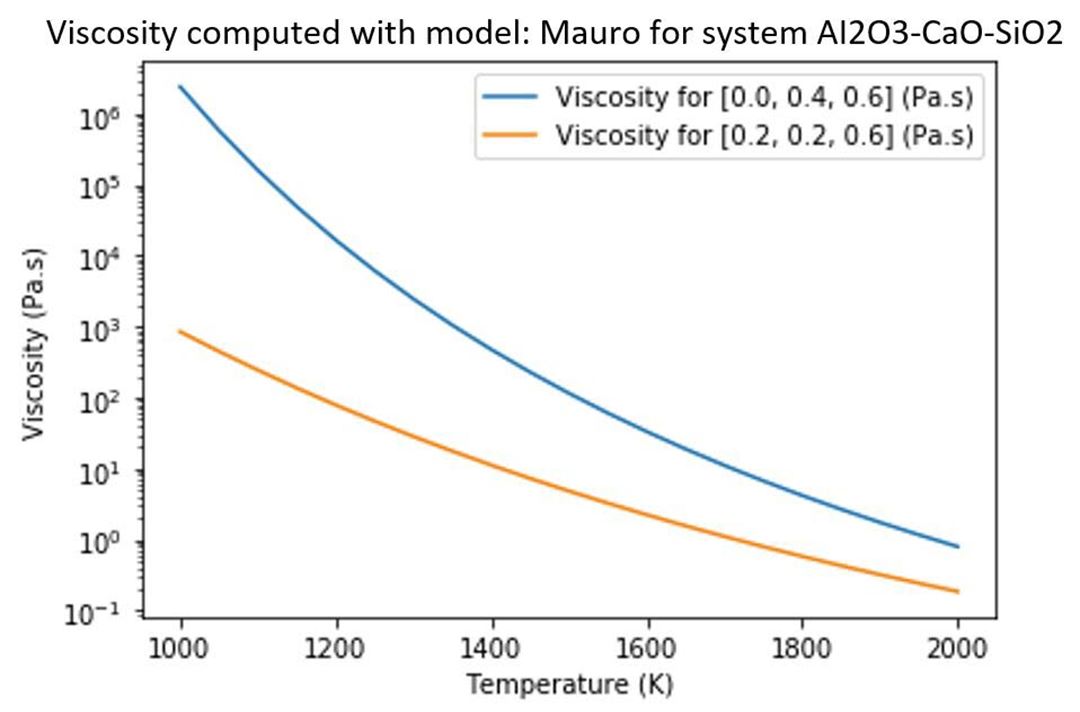

- A viscosity module based on different empirical and physical models
- A viscosity model based on neural network
- A user interface based on Jupyter Notebook (local or online via a Jupyter Hub)
