Flexibility modelling method for atomic loads
Challenge and objective
- Capacity problems in the grid due to increased peak load. Identify potential for flexibility and possible rebound effect among atomic loads (washing machines, dishwashers etc.)
Work performed
- Development of a data-driven flexibility modelling method for shiftable atomic loads, based on 1-minutes measurement of electrical appliances.
Significant result
- Shifting of all cloth washing activities planned between 20:00-20:15 to 21:00-21:15 resulted in flexibility potential of 11.5 kW for 100 households.
Impact for distribution system innovation
- Reduced peak loads and reduced need for new grid investments.

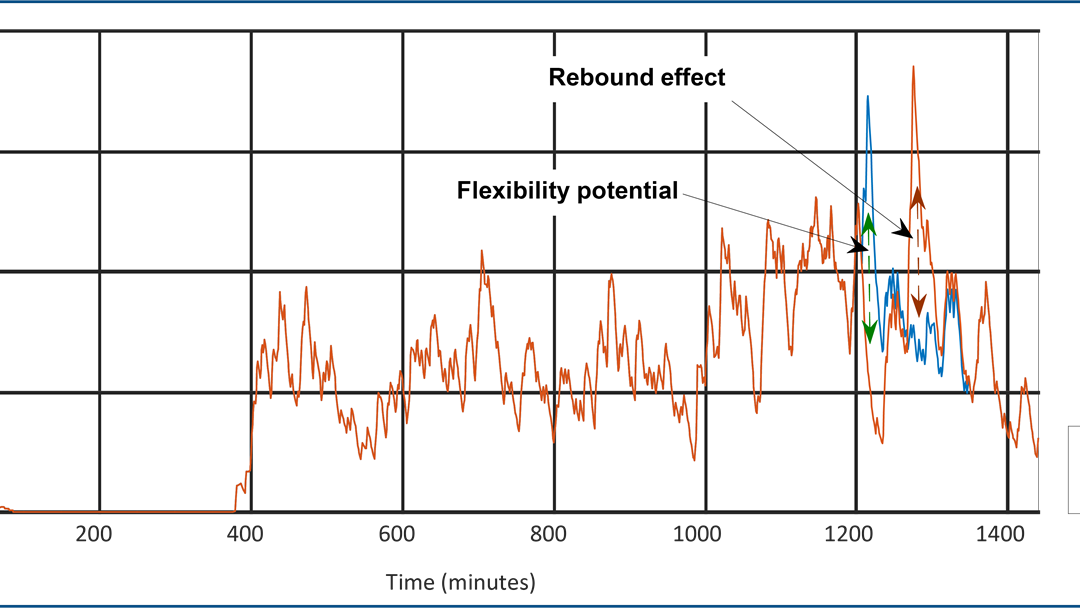

![Impact of shifting activity for 100 households where all of them have at least one time appliance use at the particular day.](/globalassets/project/cineldi/kunnskapsbank/figurer-resultater/2018-flexibility-modelling-method-for-atomic-loads-wp5.png?width=1080&height=608&mode=crop&scale=both&quality=80)
![](/globalassets/project/cineldi/innovasjoner/bildeblokker-ikon/ikon-wp5.png?width=1080&height=608&mode=crop&scale=both&quality=80)
References in CINELDI
- M.Z. Degefa, H. Sæle, I. Petersen, P. Ahcin: "Data-driven household load flexibility modelling: shiftable atomic loads", IEEE ISGT 2018.
- SINTEF blog
