GeoScale - Direct Reservoir Simulation on Geocellular Models

Adjoint Multiscale Mixed Finite Elements for Water Flooding Optimization

Fast approximate adjoint and forward simulation for finding optimal rates and/or well placements for water flooding optimization.

Basic Ideas

  • couple MsMFEM for pressure and a flow-based coarsening for saturation for fast forward and adjoint simulation
  • for additional speed-up, compute coarse-grid communication mappings in a preprocessing step prior to the optimization loop

Features

Adjoint code developed for simulation of two-phase incompressible flow model on fine and coarse grids. Model speed-up through preprocessing applies both to forward and adjoint coarse models. For this simplified model, there is a natural relation between the adjoint variables on the fine and the coarse model through a dual coarse basis, which is similar, but not identical, to the forward coarse model basis. The methodology has been tested on rate-optimization for water flooding, and simple well-placement problems. Even coarse models with an upscaling factor of ~500 show good performance for optimization purposes.

Advantages

  • enables fast approximate simulations without initial full model run / snapshots
  • incorporates geological/geometrical features even for high degree of coarsening
  • only well-bases need to be updated in well-placement optimization

References:

Stein Krogstad, Vera Louise Hauge , Astrid Fossum Gulbransen. Adjoint multiscale mixed finite elements. SPE J., Vol. 16, No. 1, pp. 162-171, 2011. DOI: 10.2118/119112-PA.

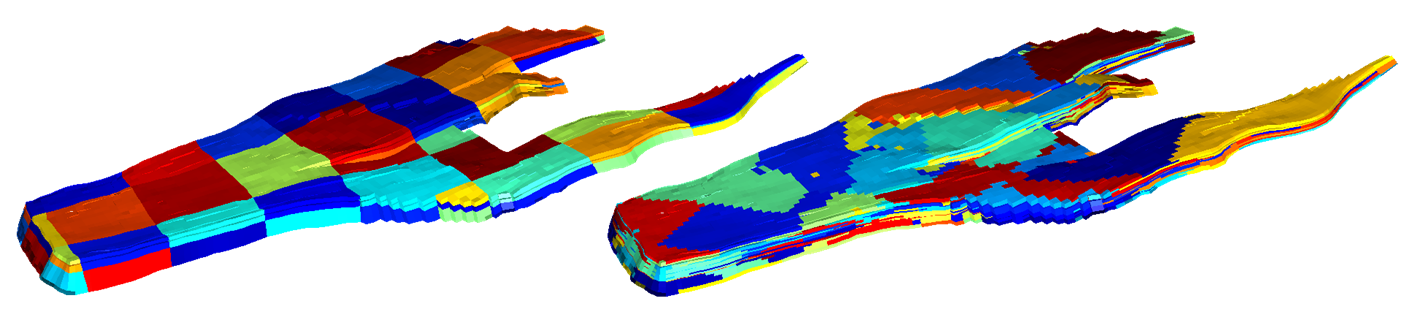

Coarse pressure grid and coarse saturation grid

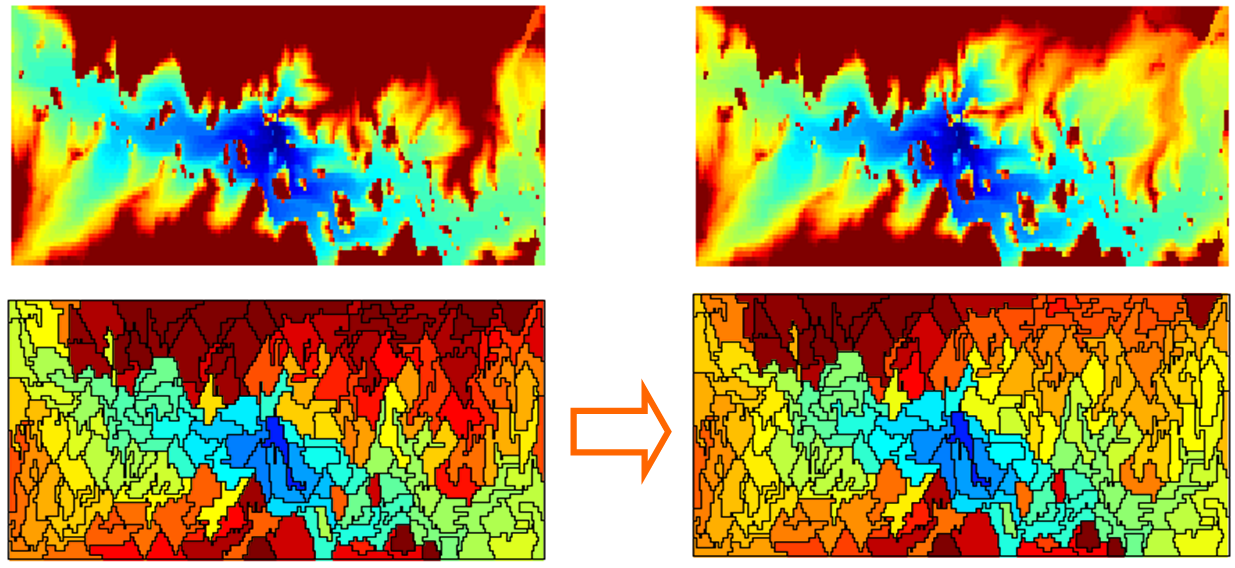

Initial fine-grid saturation (top left), initial coarse-grid saturation (bottom left). Optimized coarse saturation (bottom right) and the resulting finegrid saturation (top right).

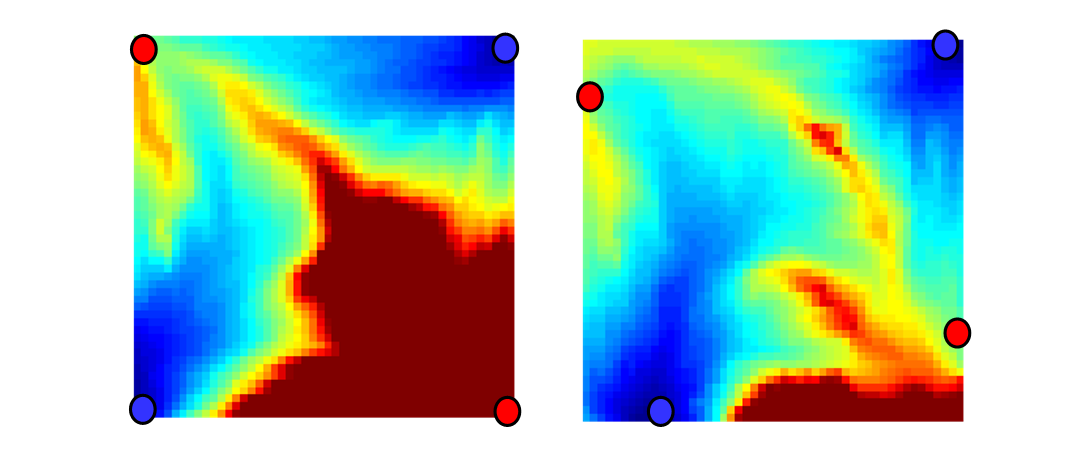

Initial (left) and optimal (right) well placements. Producers in red, injecrtors in blue.
