G60
G60 Base Test Station

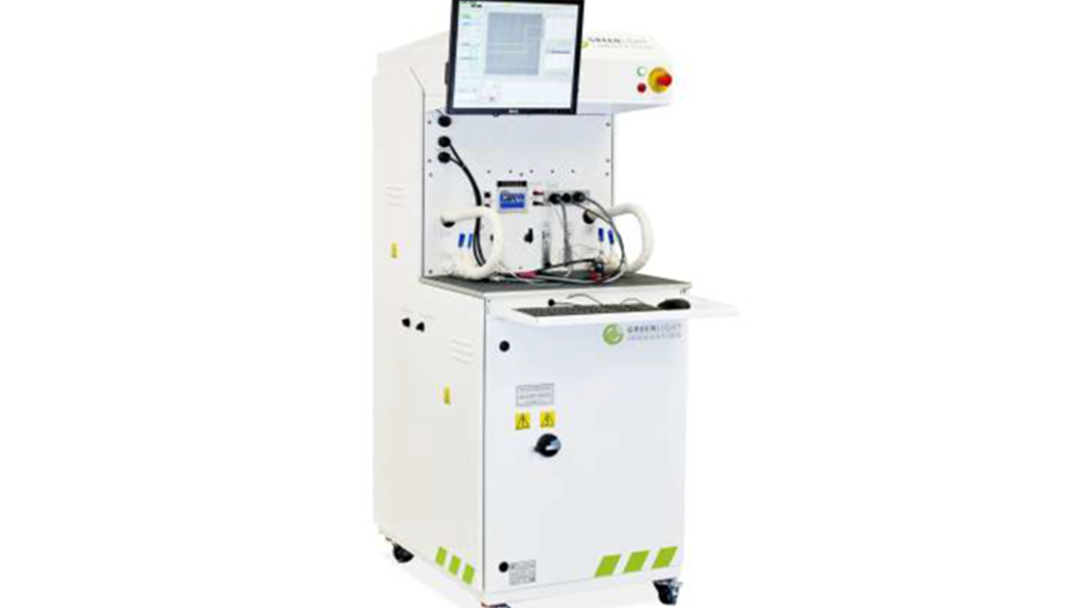

![G60 fuel cell test station at SINTEF](/contentassets/0512c5a08c4e456db6d3e6762e68cb9f/g60_landscape.png?width=1080&height=608&mode=crop&scale=both&quality=80)
The G60 Base Test Station (CE Rated-C) is a fully Automated Fuel Cell Test Station will allow operators to perform automate test protocols, such as Start-up and shut-down routines, Durability profiles, Polarization curves, Diagnostic tests, such as impedance scans or cyclic / linear sweep voltammetry, Dynamic load cycles on fuel cell single cells.
Technical spesifications:
-
Max cathode gas flow: 20 NLPM (3x MFCs: Air, N2, O2)
-
Max anode flow: 10 NLPM (2x MFCs: H2, N2)
-
Automatic contact humidification module (up to 90°C
-
Electric reheat module (up to 110°C)
-
Nitrogen purge rotameter; software activated
-
Automatic back pressure control module (0-3 Barg)
-
Stack end-plate heater PID control (2x 2A max)650W electronic load bank, 50V, 125A, air cooled, max current available down to 0.0V (zero volt compensation)
